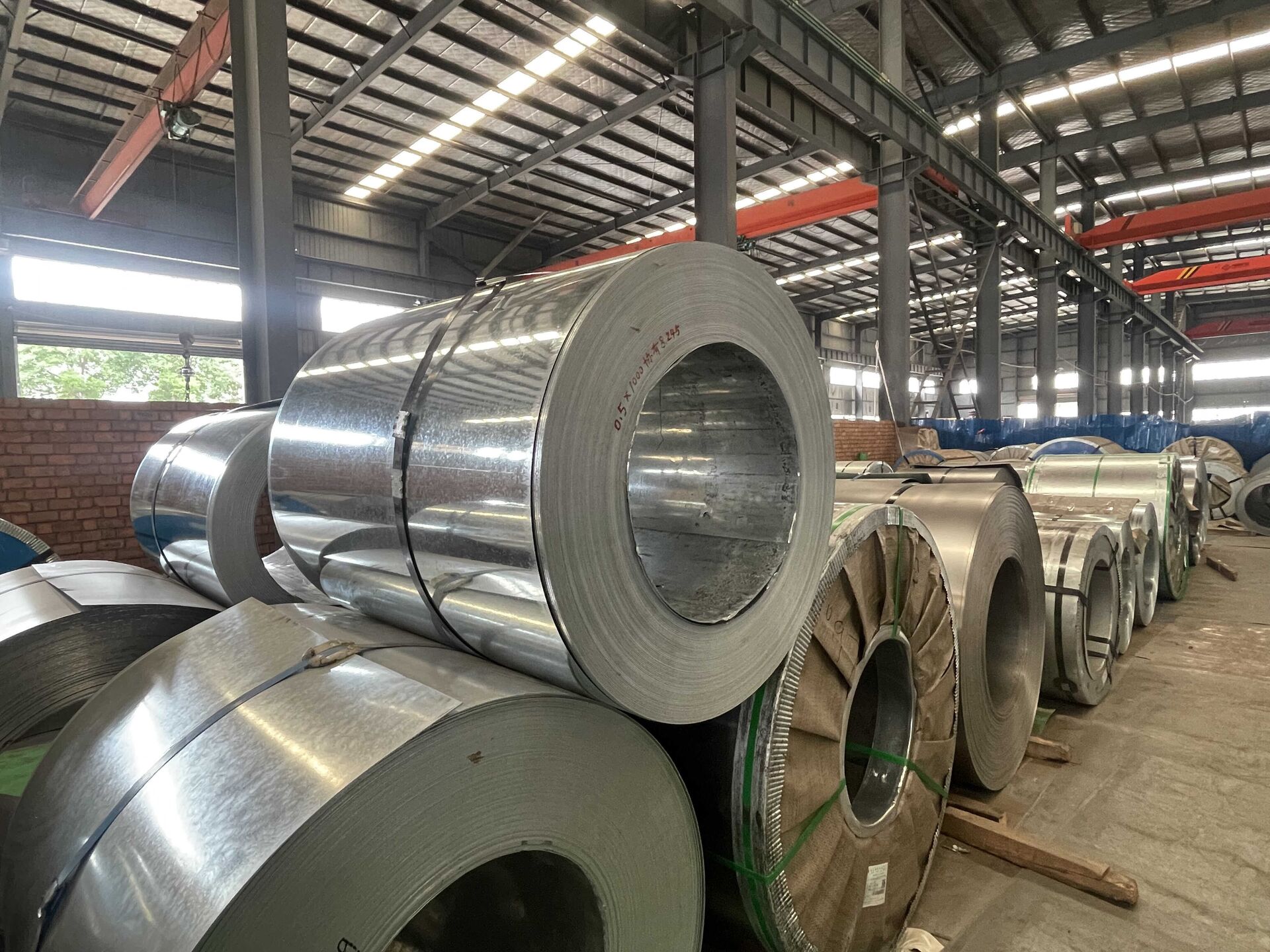

Hot Dipped Galvanized Steel Sheet in Coil (GI coil) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.
It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, |
| SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ |
| CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.12-6.00mm,or customer's requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGI) And Cold Dipped Galvanized Steel(CDGI) |
| Zinc Coating | 30-275g/m2 |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| Coil Weight | 3-20 metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
| Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
Galvanizing steel production line with annual output of 200000 tons, which adopts the mo
st advanced American GBNB and Germany's Siemens electrical control systems. it can produce ZERO
zinc spangle, small-zinc spangle and common zinc spangle etc.Thickness from 0.125 mm to 4.5mm,
and width from 500 mm to 1250 mm, and zinc coating from 40 - 275 g/m2,surface passivation and oil
-coating can be performed. In addition, the company introduces a slitting machine, which can meet
the customers' different requirements on the width. And Two roll-formed machines , which can produce
wave roofing sheet and Trapezoidal corrugated sheet.
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next
working day.
